Automation Displays, Inc.
|
|
|||
|
|||
|
Documentation Files:

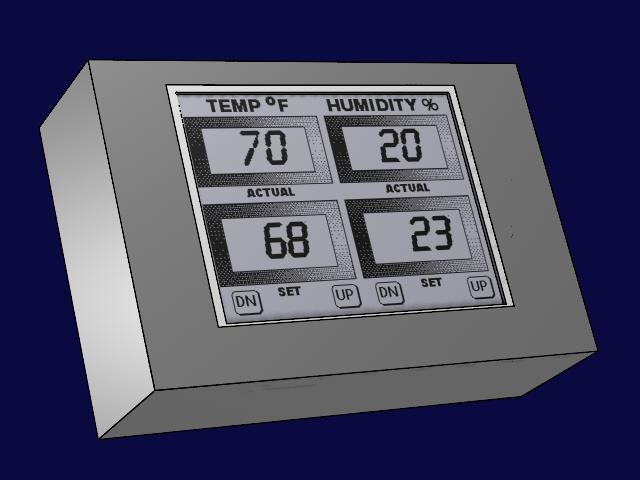

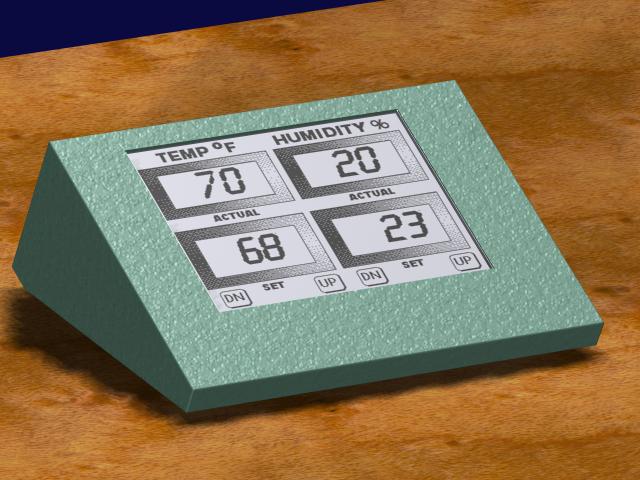

touchscreen001.htm Web page showing a typical bitmap downloaded from the touch screen. amlcd-enc001.jpg A picture of the touchscreen in a steel box suitable for mounting on the surface of a wall. amlcd-enc002.jpg A picture of the touchscreen in a steel box suitable for mounting on a desk top. keyboard.htm Web page with dynamic keyboard example. medchart.htm Web page with dynamic chart update example. |
|
| Part # AMLCD-240 | Price: $ | Product Status: production Qty in Stock: 0 |
|
| ||
| 1/4 VGA monochrome backlit 5.7" (diagonal) LCD with touchscreen interface. Shown in steel enclosure 5"H x 7.5"W x 2.25"D. Custom graphic interface development is included. 320 x 240 pixel dark blue on white display with cold cathode fluorescent backlight. See documentation files for examples. Turn-key systems in custom enclosures are available. Includes RS-232 serial interface to popular programmable controllers or your custom data interface. 120 VAC power. | ||
|
This product has many customizable properties that affect price and delivery. Please contact a salesperson at Automation Displays for additional assistance ordering this product. |
| 3533 N. White Ave. Eau Claire, WI 54703 715.834.9595 (voice) 715.834.9596 (fax) adi@adipanel.com | |
LCD touchscreen
