Documentation Files:
e646-80r.pdf Schematic diagram. e646-80r_connect.pdf Single page of text with illustrations showing how LEDs are connected to E646-80R I/O cards. 22-44_connect3.pdf Single page of text with illustrations showing how LEDs and switches are connected to 8171-80 and E646-80R I/O cards. |
|
| Part # E646-80R | Price: $ 165 | Product Status: production Qty in Stock: 12 |
|
| ||

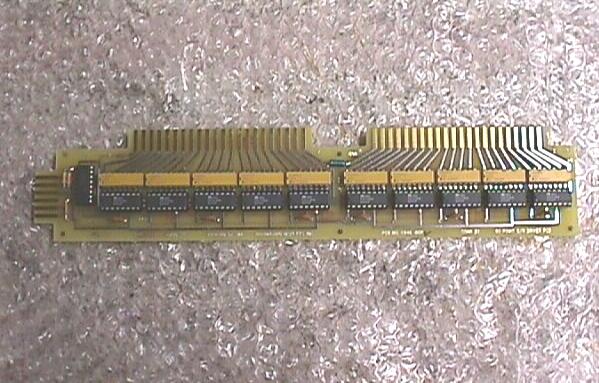

| 80-point I/O card with open-collector outputs. Clock, data and strobe inputs. Reliable MIC5821 driver chips in sockets. Synthetic gold plated connector tabs mate with 22/44 card edge connectors, dual row with .156" spacing. Fits in card cage or mounts flat to subplates. Cool running and reliable - thousands of these cards are in service all around the globe. Same size, pinout, and interface as the 8171-80 driver card, but the E646-80R includes series resistors on all outputs. Uses 75 milliamps of current at five volts DC. Ideal I/O expander for Z-Card applications. Order with standoffs to include 7/16" spacers for mounting on a subplate using #4 screws. Order without standoffs to mount in a card cage. | ||
|
Terms & Conditions $ 165 USD |
| 3533 N. White Ave. Eau Claire, WI 54703 715.834.9595 (voice) 715.834.9596 (fax) adi@adipanel.com | |
80-point open collector with resistor packs
