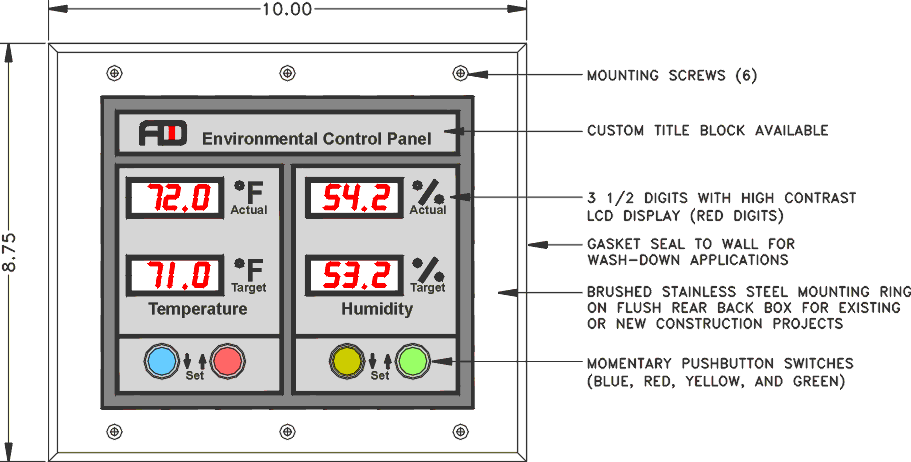

sera-K023A-300.pdf Electrical schematic with wiring details including the output transducers. sera-K023-100.pdf Mechanical drawing of standard backbox with dimensions and suggested wall cutout. K023.gif Picture of typical panel with text describing the features. ADI_Environmental-Ctl.pdf ADI Specification Sheet - Two pages, including description of features and design data. |
|
| Part # K023A | Price: $ 1205 | Product Status: Production Qty in Stock: 10 |
|
| ||
|
The Environmental Control Panel is designed for temperature and
humidity control and monitoring. These panels are used in operating
rooms, surgical suites, and laboratories. The K023A model is wired to
an internal circuit for set point adjust, and includes a standard
flush-mount backbox. These units are washdown compatible, and operate
on 24 volts AC or 24 volts DC. Bright 1/2" (12.7 mm) characters are
LCD displays with LED backlighting. The
characters are easily viewed from across the room. The standard backbox is designed to be flush-mounted in new construction. It is manufactured from 16 gauge steel. For retrofit construction, see the K023AR. For models without the internal set-point circuitry, see K023B and K023BR. Delivery time is two weeks. |
||
|
Terms & Conditions $ 1205 USD |
| 3533 N. White Ave. Eau Claire, WI 54703 715.834.9595 (voice) 715.834.9596 (fax) adi@adipanel.com | |
Panel with Set Point Circuit & Standard Box
