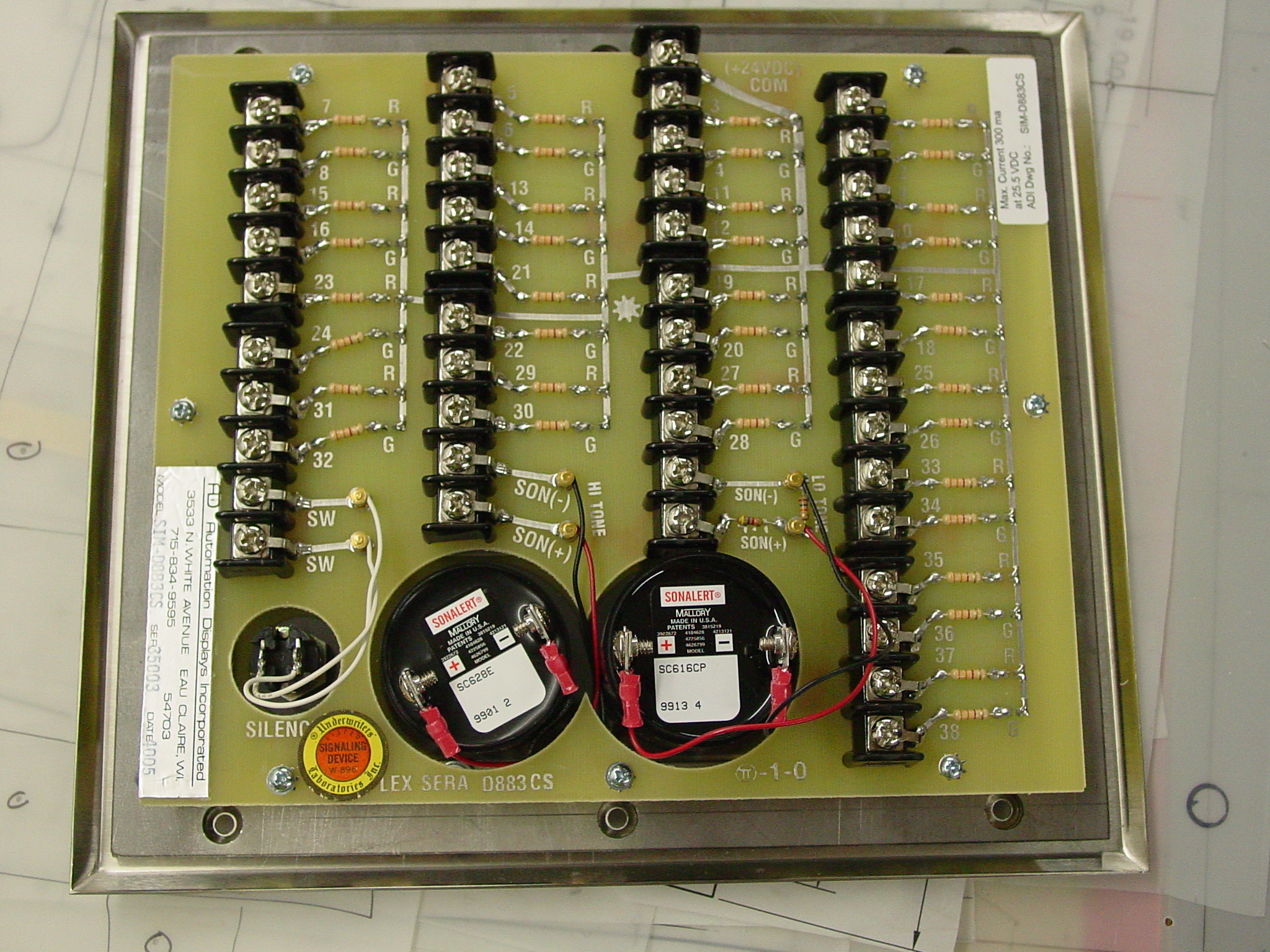

D883_CS_back1.JPG Hi resolution photograph of the rear view of the SERA annunciator showing the screw terminal connections. ADI_D883CS.pdf ADI Specification sheet - one page including description and mechanical and electrical specifications. 9985-100A_Flush_Box.pdf Mechanical drawing of backbox with dimensions and mounting detail 9985-100B_SS_Frame.pdf Dimensioned drawing of stainless steel trim ring SER_D883CSBACK_combined.pdf Wiring illustration SER_D883CS_elec_sch.pdf Single page electrical schematic. |
|
| Part # SER-D883CS | Price: $ 595 | Product Status: production Qty in Stock: 11 |
|
| ||
| 19-Zone SERA annunciator with one red LED and one green LED indicator for each zone. Outside dimensions are 10" (254 mm) wide and 8.75" (222.25 mm) high. These units are supplied with a stainless steel bezel and a pushbutton for the silence function. Each unit is delivered fully assembled and tested. The SER-D883CS has two sonalerts, each with a distinct tone. | ||
|
Terms & Conditions $ 595 USD |
| 3533 N. White Ave. Eau Claire, WI 54703 715.834.9595 (voice) 715.834.9596 (fax) adi@adipanel.com | |
19-Zone Annunciator
